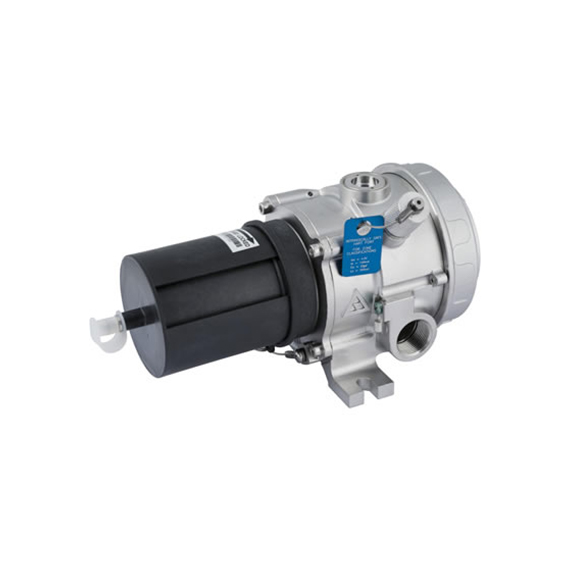

Det-Tronics IR Detector PIRECL
The PointWatch Eclipse® Model PIRECL IR Hydrocarbon Gas Detector is our most rugged stainless steel, point infrared gas detector.
It is approved to be factory calibrated to detect methane, propane, ethylene, and butane. The Eclipse goes above gas detection to life-safety control. Thanks to its onboard relays and tri-colored LED indicator, the Eclipse has earned ANSI/ISA approval (ANSI/ISA-12.13.01: 2000) to annunciate and initiate life-safety executive control functions.
Det-Tronics IR Detector PIRECL


Input Voltage
24 Vdc nominal. Operating range is 18 to 32 Vdc
Current Output
Linear 4-20 mA (current source/sink, isolated/non-isolated
Temperature Range
Operating: –55°C to +75°C (–67°F to +167°F)
Detection Range
0 to 100% LFL standard (other ranges are configurable)
Detectable Gases
Most flammable hydrocarbon vapors are detectable.
L = 9.3 in (23.62 cm), W = 5.2 in (13.21 cm), H = 4.6 in (11.68 cm)


  • Superior optics protection system.
  • No undisclosed failure modes.
  • SIL 2 model certified to IEC 61508 by exida®
  • Routine calibration not required.

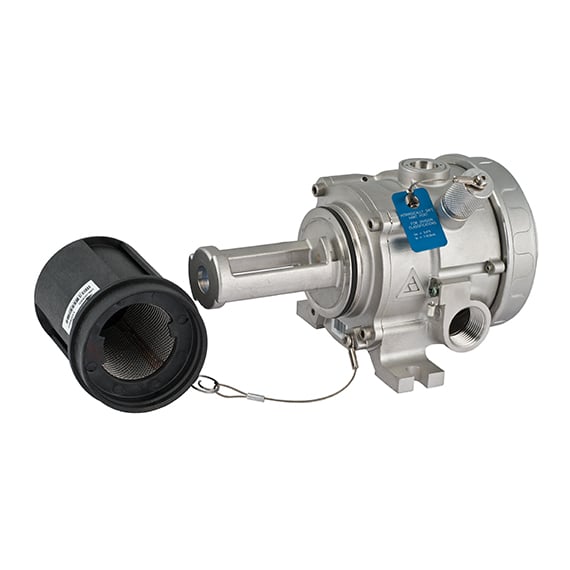

  • Explosion-proof, stainless steel housing with tethered weather
  • protection baffle.
  • Integral wiring compartment eliminates need for external junction boxes.
  • Built-in tri-color LED eliminates need for external display module.
  • Built-in optional relay package eliminates need for external relay
  • output module.
  • EQP models available.
  • Non-interfering HART communication capability.
  • Optional Intrinsically Safe HART communication port
  • Optional hand-held HART communicator enables field configuration
  • and calibration.
  • Optional model UD20 Universal Display for remote calibration.
  • Heated sapphire optics deliver long-lasting, high performance
  • detection capability.
  • Immune to damage from exposure to constant background gases or
  • to high gas concentrations.
  • FM, CSA, ATEX, IECEx, DNV/MED, and INMETRO certifications.
