Cyclonic WBD Series Wafer Style Choke Valve
Cyclonic has been setting the standard for precise and repeatable control of gases and liquids.

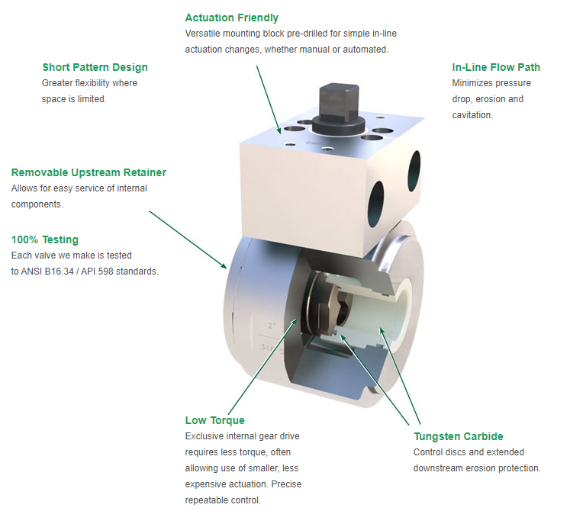

Cyclonic's WBD Series is a Wafer Style Choke Valve. Like all Cyclonic valves, the WDB Series is built with the Cyclonic Design Difference. When you need to control a wide range of pressures and flow rates of gases or liquids, Cyclonic’s superior design gives you accurate control and a long safe valve life.

Exclusive Side-Entry Design:
The valve design allows for a simple, one-man changeout of the tungsten carbide discs to reconfigure the valve for changed flow conditions.  Easily complete in-line inspection and maintenance critical for increasing safety and protecting the environment - all without taking the valve out of line, or removing the actuator.
WBD Series


Pressure Ratings
Up to 3,705 psi MOP
Standard: API 4130 (75K) and 316SS, or customer-specified materials
ANSI Class
ANSI B16.34 and/or API 6A wall thickness and bolt loading
Manual, electric, hydraulic or pneumatic
1" to 6"
Open/close or modulating
Production choke, high pressure injection control (CO2, water and steam), bypass valves, blow-off valves, bleed-down valves, OEM downhole testing, OEM horizontal pump testing, compressor suction


  • Machined from solid bar stock; no porosity
  • Xylan™ coated 17-4 stainless steel stem and disc driver
  • Automated valves have selectable failure position
  • Raised face flange connection
  • Easy to maintain
