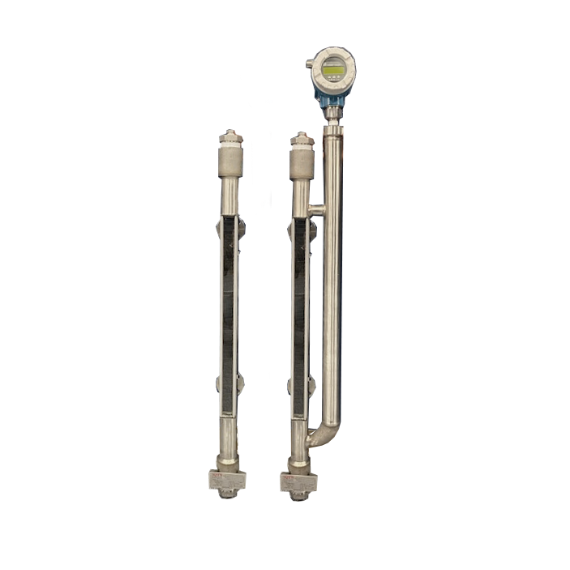

In applications that are low pressure and operating near or at ambient pressure a QTS Eco-Trac is an alternative solution to fragile tubular glass.

For limited liability units, the Eco-Trac is designed for easy to read level indication in a reduced cost efficient package. Best suited for but not limited to applications such as skid systems, boiler feed water tanks, refrigeration units, wastewater treatment facilities, etc.

Features

  • Rated per ASME Class 150
  • Standard Sch. 40 Pipe Chamber Construction
  • Wide Flag Indicator for optimal viewing
  • Low Pressure and low temperature option

Specifications

Technical Data

Materials 316 SST & 304 SST*
Pipe Diameter 2” Sch. 40
Minimum Specific Gravity 0.65 SG
Maximum Indication Length (C-C) 96” (8ft)
Pressure Rating ASME CL150
Temperature Rating 500F
Indicator Type Wide Flag Indicator (Black & Yellow)

*Carbon Steel / Stainless Steel Combos available upon request. Please contact sales for details
