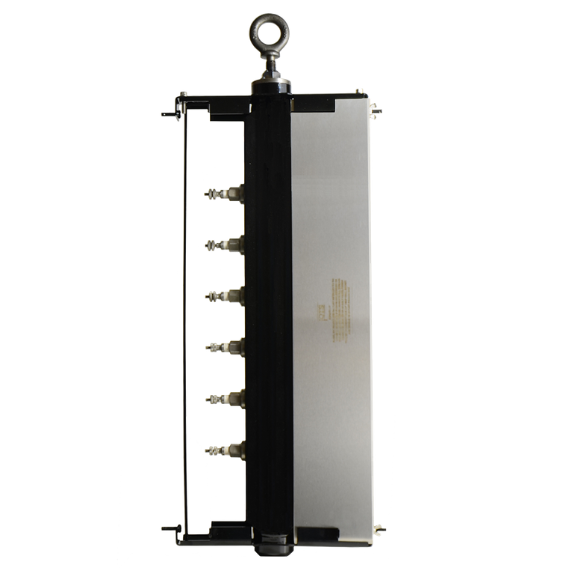

The Level-Trac Model 501 probe column features sturdy construction in full compliance with ASME requirements.

Each column is custom built to the customer’s individual specifications.

The Model 501 Water Column may be used as an independent remote level indicator per ASME PG-60, or as a traditional water column for the mounting of direct reading sight glasses. All piping connections are to user specifications.

Level-Trac FAQs and Start Up Process

Play Video

Features

  • Max 2000 PSI
  • Extruded A-105 Column
  • Probe Spacing per Customer’s Requirements
  • Optional Connections for Direct Reading Sight Glasses
  • Piping Connections to Meet Customer Specifications
  • Type 810, Zirconia Insulated Probe
  • Piping Connections to Meet Customer Specifications

Specifications

Chamber A-105 Extruded
Probe Guard 304 SS Sheet Metal
Probe Mounting Horizontal Probe Mounting
Probe Type Type 810
Probe Material Zirconium Insulated Probe, Metaflex Gasket Seal
Probe Gasket Spiral Wound
Rating 2000 PSI Steam Working Pressure, 1100°F
