QTS offers a complete series of point level switches.

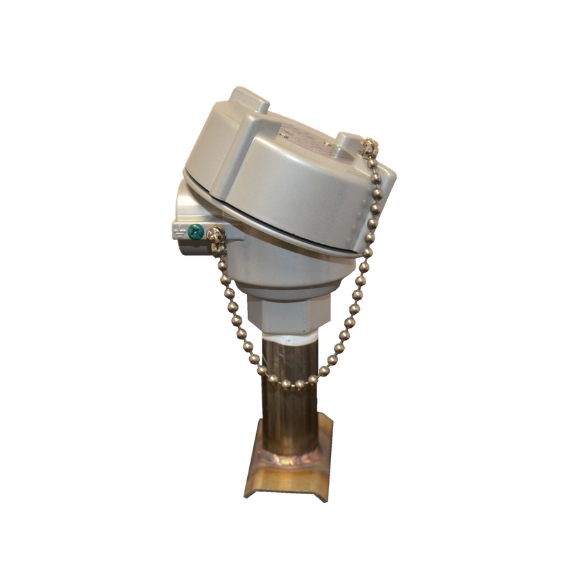

MTLS-1A switches mount onto the magnetic level gauge chamber. As the magnetic level gauge float travels, it activates the switch through the chamber. Easily adjustable on the chamber, MTLS-1A switches provide low cost, dependable alarm solutions without having to make alternative modifications to the vessel.

Features

  • Attached directly to chamber. Easily adjustable with clamps – no additional piping required
  • Low cost alarm solution
  • Single Pole Double Throw (SPDT) Switch
  • Minimum Temperature Rating -40°F
  • Enclosure Classifications Class 1 Div1; Groups B, C,D

Specifications

Max Volts 150 VDC / 125 VAC
Max Current 1.0 AMPS
Max Power 25 W
Dead Band 0.50 Inch
Max Temp 302° F
Min Temp -40° F
Contacts SPDT
Area Classification Enclosure Classifications Class 1 Div 1
Groups  B, C, D
